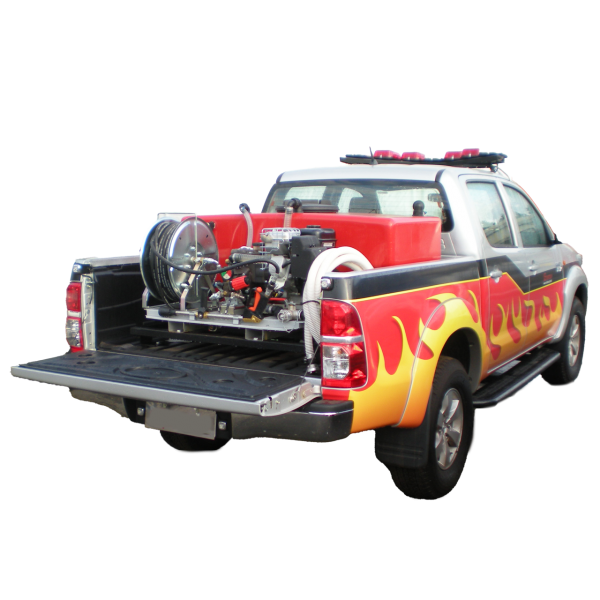

High pressure pick-up fire kits with fiberglass tank

Fire extinguishing kits to be fitted on a pick-up or van intervention vehicle with high pressure motor pump and tank

The fire-fighting modules fitted with a high-pressure pump are intended for installation on a vehicle or on an industrial site.
These kits are compatible with all pickup type vehicles on the market, regardless of the manufacturer or model.
The dimensions of the kit are universal and easy to assemble.

performances

From 34 L / min. at 170 bar
Up to 135 L / min. at 20 bar
pumps diaphragm or piston
Engines Petrol or diesel
Tank from 350 to 800 Liters
+ Hose reel, hose and lance

Further information

Motor

Diesel gas

performances

34 L / min. at 170 bars, 42 L / min. at 150 bars, 42 L / min. at 100 bars, 42 L / min. at 150 bars, 50 L / min. at 40 bars, 70 L / min. at 40 bars, 80 L / min. at 40 bars, 100 L / min. at 50 bars, 135 L / min. at 20 bars

Tank capacity (Liters)

100, 200, 350, 400, 450, 500, 550, 600, 800

Tank shape

Cube, L, T

Tank materials

Fiberglass (GRP)


Information

reference:

KITHPICKUP

Categories: Business applications: ,

MEDIUM PRESSURE PUMPS

Gasoline diaphragm pump

Medium and high pressure pumps made from anodized aluminum in areas in contact with fluids. Max temperature of 60 ° C.
Petrol engines between 10 and 18 CV depending on the model.

Model

Debit

Max pressure

Engime

01B

50 L / min

40 Bar

10 Hp

02B

70 L / min

40 Bar

14 Hp

03B

80 L / min

50 Bar

14 Hp

04B

100 L / min

50 Bar

18 Hp

05B

135 L / min

20 Bar

10 Hp


Diesel diaphragm pump

Medium and high pressure pumps made of anodized aluminum in areas in contact with fluids. Max. Temperature 60 ° C.
Diesel engines between 11 and 19 CV depending on the model.

Model

Debit

Max pressure

Engime

01D

50 L / min

40 Bar

11 Hp

02D

70 L / min

40 Bar

11 Hp

03D

80 L / min

50 Bar

12 Hp

04D

100 L / min

50 Bar

19 Hp

O5D

135 L / min

20 Bar

11 Hp


HIGH PRESSURE MOTOR PUMPS

Pump piston Gasoline

High and very high pressure 3 piston ceramic pumps in aluminum with brass cylinder head. Maximum temperature 60 ° C.
Petrol engines between 14 and 18 CV depending on the model.

Model

Debit

Max pressure

Engime

50B

42 L / min

100 Bar

14 Hp

51B

42 L / min

150 Bar

18 Hp

52B

34 L / min

170 Bar

18 Hp

54B

21 L / min

200 Bar

16 Hp

57B

50 L / min

100 Bar

18 Hp

59B

21 L / min

180 Bar

14 Hp

60B

21 L / min

250 Bar

18 Hp

62B

42 L / min

100 Bar

18 Hp

Diesel piston pump

High and very high pressure aluminum 3 piston ceramic pumps with brass cylinder head.
Maximum temperature 60 ° C.
Petrol engines between 15 and 19 CV depending on the model.

Model

Debit

Max pressure

Engime

50D

42 L / min

100 Bar

15 Hp

51D

42 L / min

150 Bar

19 Hp

52D

34 L / min

170 Bar

19 Hp

54D

21 L / min

200 Bar

15 Hp

57D

50 L / min

100 Bar

19 Hp

59D

21 L / min

180 Bar

15 Hp

60D

21 L / min

250 Bar

19 Hp

62D

42 L / min

100 Bar

19 Hp

Ready-to-install kits consist of:

  • Water tank from 100 to 2500 Liters in Fiberglass, or stainless steel cube-shaped, L-shaped or T-shaped

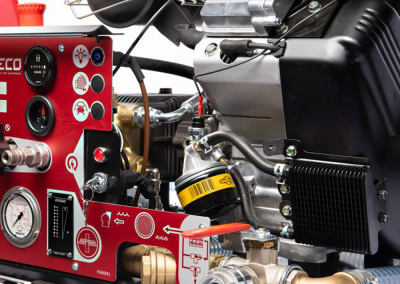

  • Fire engine with motor
  • 1 or 2 manual or electric reels up to 100m of hose
  • HP submachine gun water lance
  • Chassis receiving all these elements

1 • MAXIMUM LIGHTNESS:
with the GRP tank, the weight is lower than those built with another material (stainless steel) by about 50%, thus allowing to have a reduced load, or at equal weight, to increase the water capacity on the vehicle.

2 • RESISTANCE: the mixture of fiberglass fabric and resin, guaranteed with current technology better strength compared to other materials, and is easier to repair in the event of an accident (the same technology used as for racing cars, regatta boats and planes).

3 • PRODUCT / PRICE REPORT: with GRP tanks there is a cost reduction which affects the price of the final product.

4 • MONOLITHIC TANK.

5 • EXTINGUISHING AUTO TANK.

Through the new working methods of PRFV (Glass Fiber Reinforced Plastics), it has been possible to develop products with radically different shapes and structures and to be able to make them MONOLITHIC (one piece). This novelty has eliminated the big drawback of insufficient mechanical resistance to transverse and centripetal thrusts which occur in all other tanks not developed with this method. Indeed the “old” working method foresees the construction of 2 half-shells united by a peripheral gluing. This system has the disadvantage of being less resistant to the torsions created by a chassis on difficult terrain. The new technology makes it possible to build one-piece tanks with homogeneous and continuous ribs over the entire height of the sidewalls and, at the same time, to make them slightly conical. The bottom, placed in the same room and equipped with 50 mm ribs reinforced with high density polyurethane, fits into the body of the tank and the whole is laminated with fiberglass on the outside and on the outside. the interior all around the perimeter which becomes, after polymerization, a single body.

The resins used are of the FR type, self-extinguishing, according to the standards:

  • DIN 53438 Teil 3 - Classification F 1/37 m / m
  • FIAT 50433 - Classification INFLAMMABLE
  • FIAT 50433/01 - Classification NOT INCANDESCENT IN FLAME

All of these events offer an exceptional opportunity for young international arbitration practitioners to debate with eminent specialists in a friendly and open format and setting. kits are completely autonomous sets, ready to go.

Option:

  • Foam spears
  • Electric wire feeders or manual

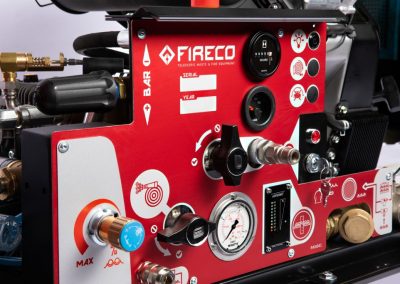

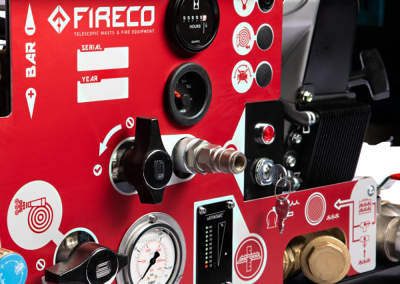

  • Panel for group orders
  • Tank filling hydro-ejector
  • Trailers
  • Patented FHP foam proportioners

Fireco has developed the patented FHP foam blending system, which can overcome back pressure problems, due to the length of hose, that occur on classic blending models by Venturi. Our patented FHP system allows the operator to obtain the best performance even with 200 m of hose, while maintaining the right mix between water and foam. A special nozzle, capable of operating either with water or with a mixture, delivers a high quality foam close to the high expansion.

Detailed description of the complete module:

  • submachine gun launcher with adjustment full jet ou broadcast Flow 40 L / min
  • steel hose reel complete with 50 meters of PVC pipe for diaphragm pump and metallic R1 pipe for piston pump
  • interchangeable cartridge filter positioned on the suction line
  • tube too full pointing down
  • Ø3 45-way valve with UNI 804 brass fitting for tank suction or external suction
  • level by communicating vase
  • manhole Ø330
  • manual accelerator
  • start and stop key
  • second discharge outlet with quick coupling
  • discharge valve for the main reel and for the second outlet
  • operating lever, stop and pressure regulation
  • pressure regulating valve
  • pressure gauge
  • spiral suction hose 6M with brass bottom valve UNI25 connection
  • drain valve - use and maintenance booklet.
