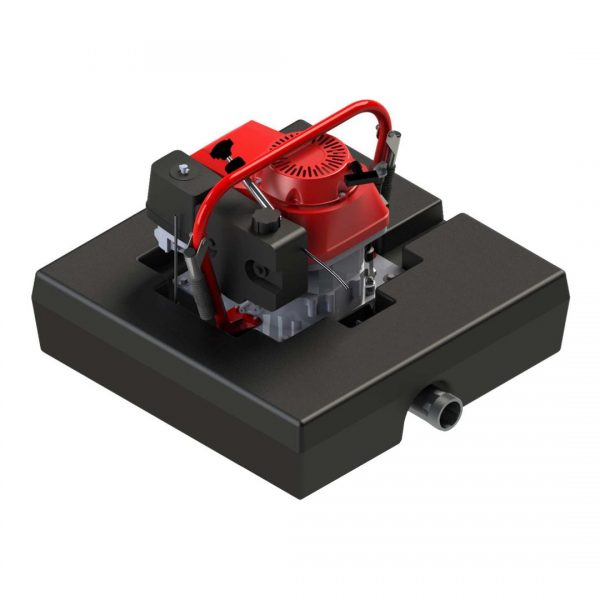

Centrifugal floating motor pump

performances

HONDA Petrol engine
1500 l / min at 0,7 Bar
340 l / min at 5 Bar

Further information

Weight 54 kg
Dimensions 81,9x76,2x56,1 cm
Engines


Information

reference:

EFP-11H-FL

Categories: Application job:

Petrol engine

These pumps have a Pressure / Flow ratio that allows them to serve both as a pump for exhaustion, or water supply, or as a fire pump. Very light, they can be easily implemented.

Features

  • Corrosion-resistant aluminum pump body
  • Stainless steel shaft and bearings
  • Bronze turbine mechanically balanced against vibrations
  • Self-priming

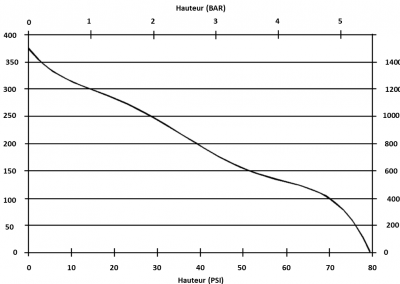

Performance

1500 l / min @ 0,7 Bars
1150 l / min @ 1,7 Bars
720 l / min @ 3,2 Bars
340 l / min @ 5 Bars

Pump Specifications

• Aluminum centrifugal pump with transmission
• Bronze turbine.
• Mechanical seal
• Automatic priming

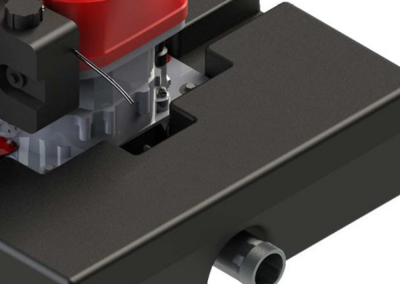

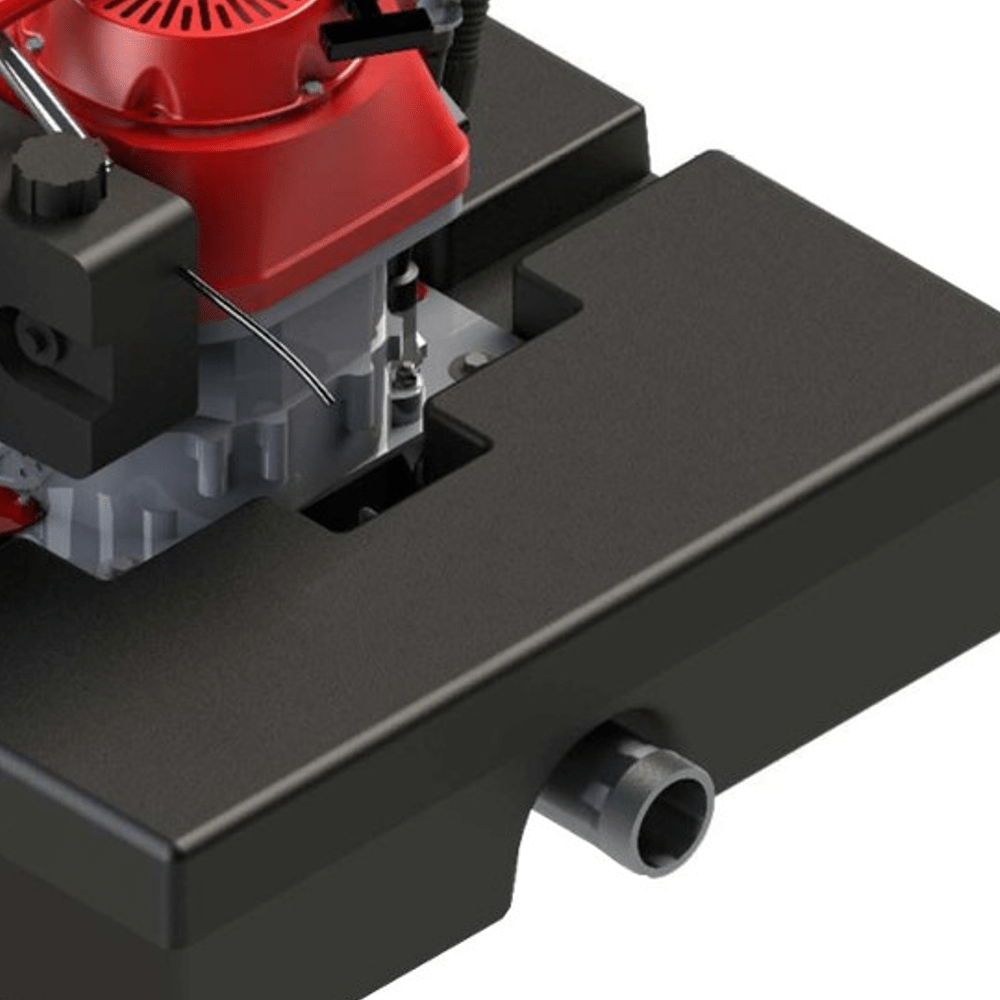

• 2 '1/2 discharge
• Self-priming
• 2 '1/2 (65mm) discharge
• 3 '' suction
• Light and resistant float

Engine Specifications

• 11hp petrol engine at 3600 RPM.
• Air cooling
• Manual launcher
• Oil safety

A selection of pumps adapted to your specific needs

Fire safety

Large range of firefighting and flood fighting motor pumps. Pumps can be skid-mounted, portable, or trailer-mounted

Marine - Sea water

Range of motor pumps resistant to sea water. Can be used for security services on ships and oil ports, commercial ports

Industrial building

Fire pumps are usually approved by a certification body and are powered by an electric or diesel engine or sometimes by a steam turbine.

Flood Construction site

Pumps used for lifting wastewater, evacuating loaded and muddy water, drying or irrigating.

Civil security

Motor pumps used during flooding to collect or drain water

Home Security

Motor pumps and a swimming pool to fight fires, as well as our range of cellar pumps intended for the evacuation of rainwater and clear water!
