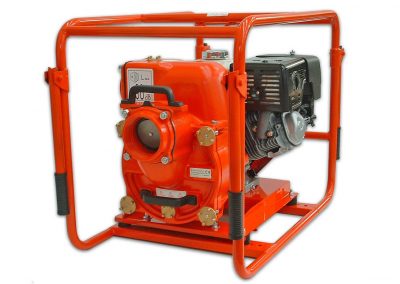

Self-priming diesel exhaust pump for dirty water (150m3 / h max)
- Exhaust pump which allows large quantities of loaded water to be moved.
- This motor pump accepts solids up to 40mm thick. It is perfect for emptying flooded areas or in industrial applications. But also on construction sites or to support civil security against flooding.
- Made in Europe.
performances
2400 lpm at 6m
1800 lpm at 14m
800 lpm at 22m
Further information
Engine characteristics
- Engine: HATZ
- Model: 1B50
- Power: 8.5kW @ 3600 RPM
- Fuel: Diesel
- Starter: Manual
- Fuel tank: 5L
- Consumption: 2.1L at 3600 RPM
Pump characteristics
- Fittings: BSP 4 ”
- GALSI 5 UNI 3600 aluminum pump body
- G25 cast iron impeller
- Max flow: 150m3 / h - 2500 lpm
- Max pressure: 3 bar - 30m
- Priming: Automatic by filling the pump body
- Solid passage: 40mm
Assembly of the motor pump
- Configuration: Tubular frame with 4 handles
- Removable pump body
- Priming plug
- Dimensions: x 830 560 630 mm x
- Weight: 114kg
Options
- Electric starter with 12V battery

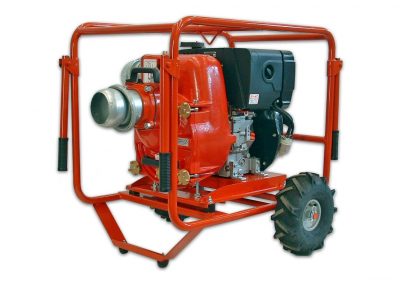

- Chassis on wheels
