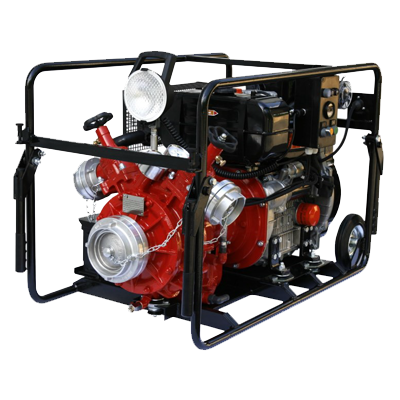

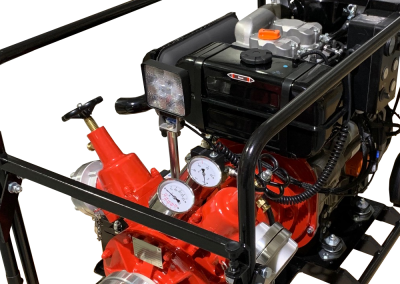

Single stage fire engine with Lombardini engine
performances
Diesel heat engine
Max flow rate 1700 l / min
1000 l / min at 7 bars
400 l / min at 11 bars
Further information
| Weight | 218 kg |
|---|---|
| Dimensions | 1070x640x730 cm |
| Engines |
Portable centrifugal fire engine

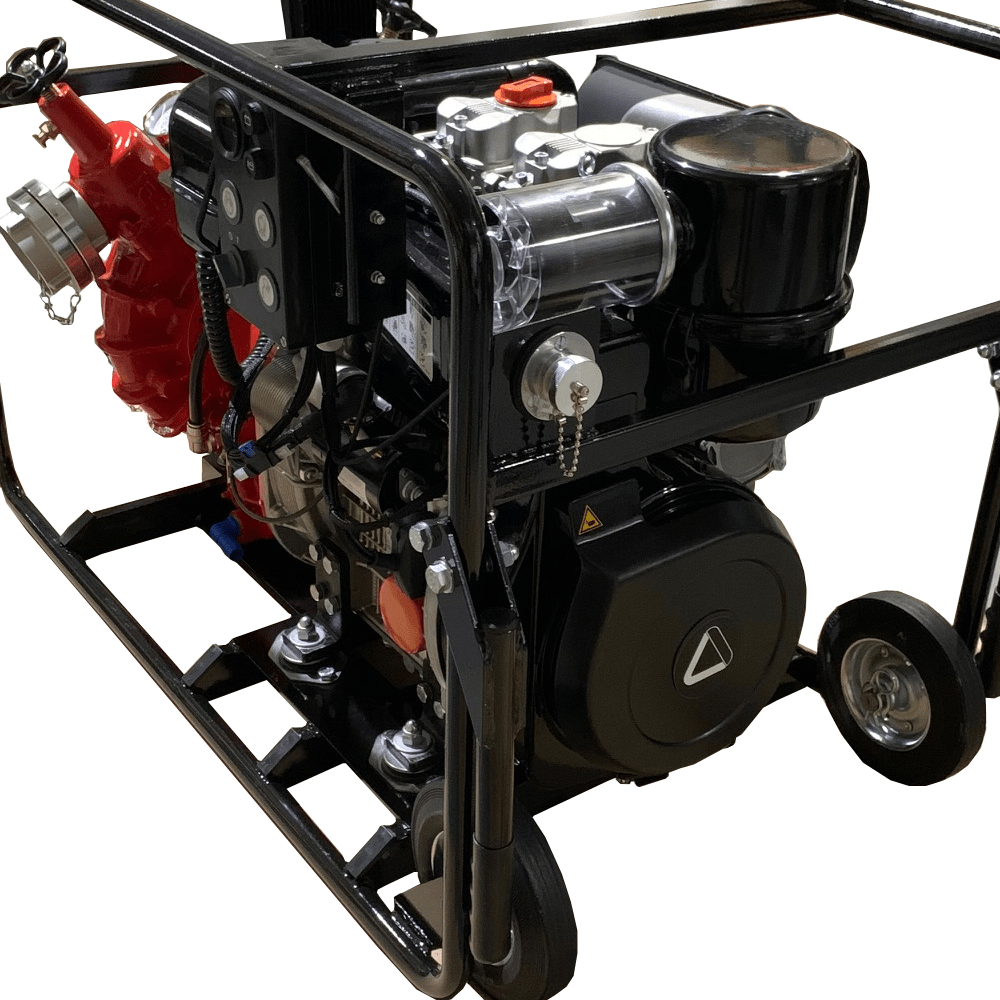

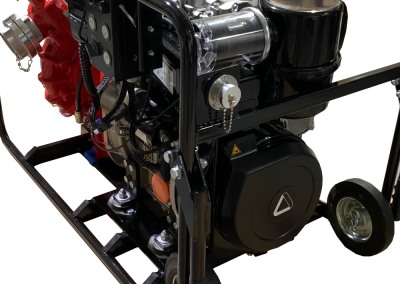

Single stage centrifugal fire engine, fitted with a 4-stroke twin cylinder diesel engine
Lombardini electric start.
Pump body and impeller in marinized aluminum,
stainless steel shaft.
Pump performance:
Maximum flow 1700 l / min
Maximum pressure 11 bar
Nominal flow 800 l / min at 8 bar and 3 meters of suction
Maximum suction height 8 meters
Tank: 10 liters
Weight: 218 kg to (fully loaded)
207 kg empty
Dimensions: 1070x640x730 mm
Air cooling
Priming system:
Automatic double piston pump
Equipements:
Painted chassis
4 Sheathed folding handles

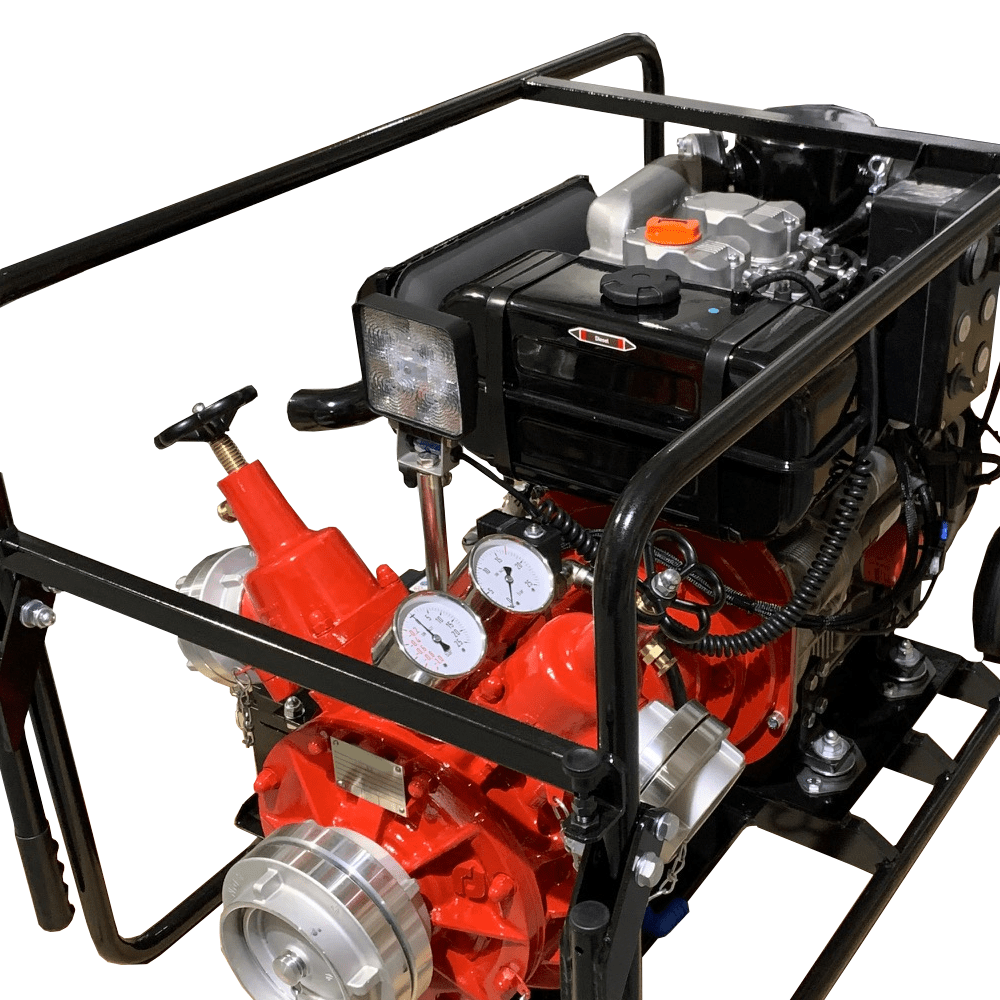

Pressure gauge
Hour meter
Drain tap
External battery charging socket

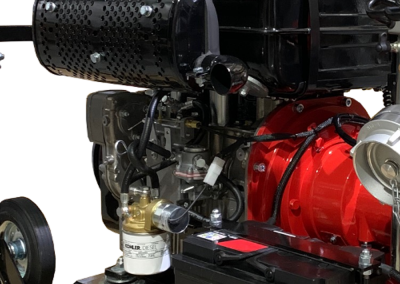

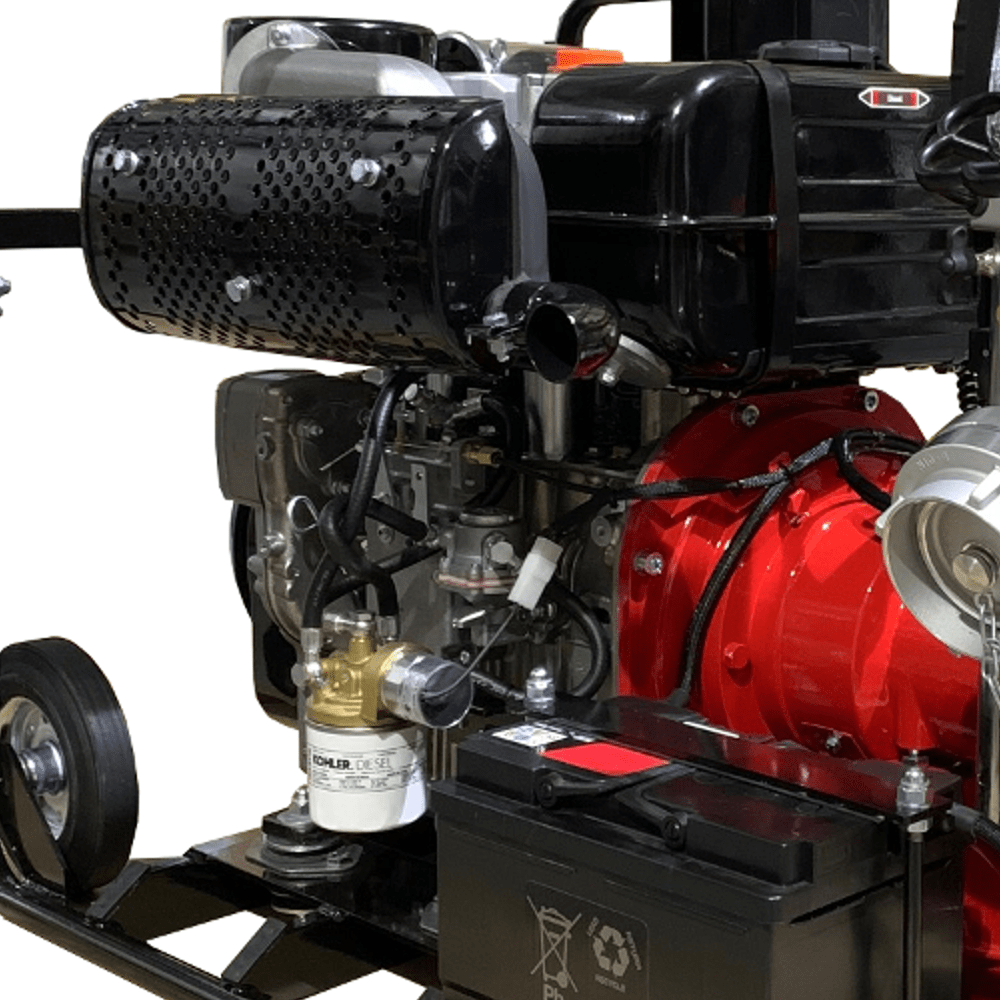

Starter battery
Electric start
Options:

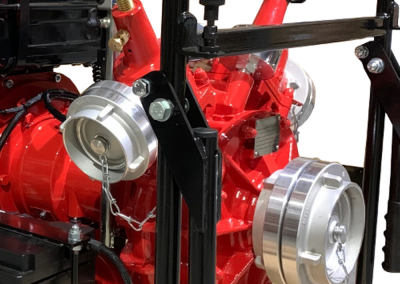

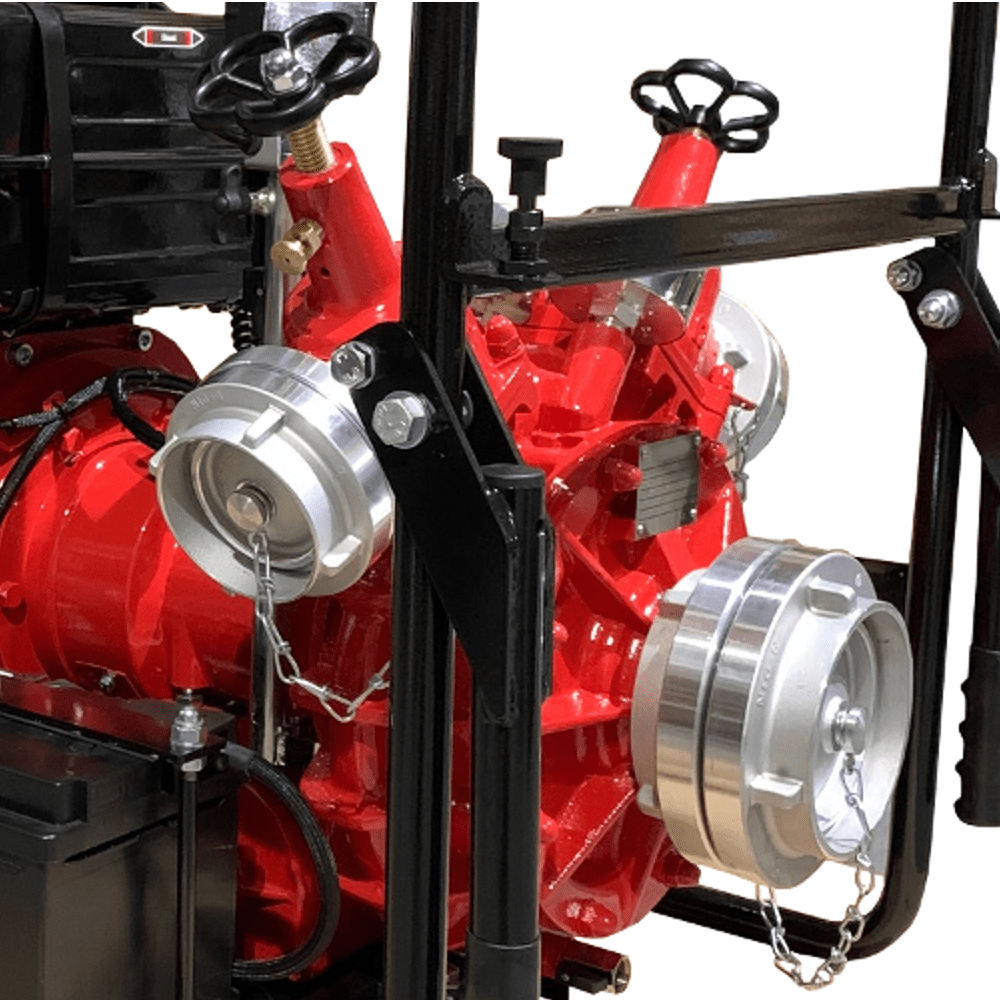

firefighters fittings
