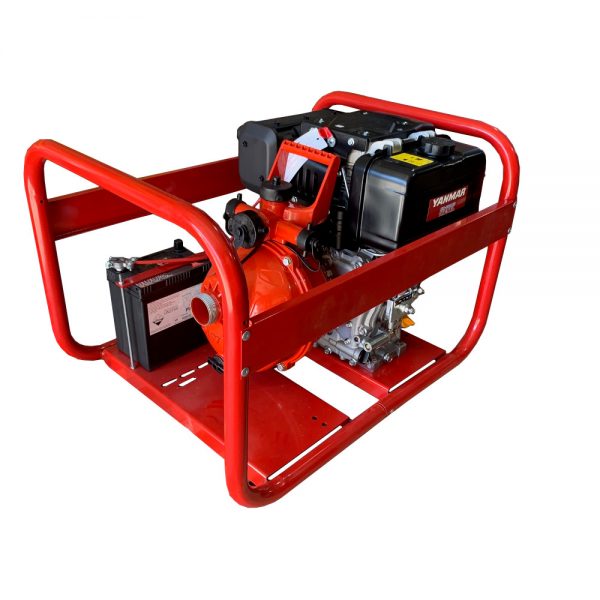

Diesel centrifugal fire pump with electric start
performances
- Diesel heat engine
- Max flow 680 l / min
- 300 l / min at 8 bar
- 100 l / min at 12 bar
Further information
| Weight | 66 kg |
|---|---|
| Length | 60x60x49 cm |
| Engines |
High pressure portable centrifugal fire pump
Diesel motor

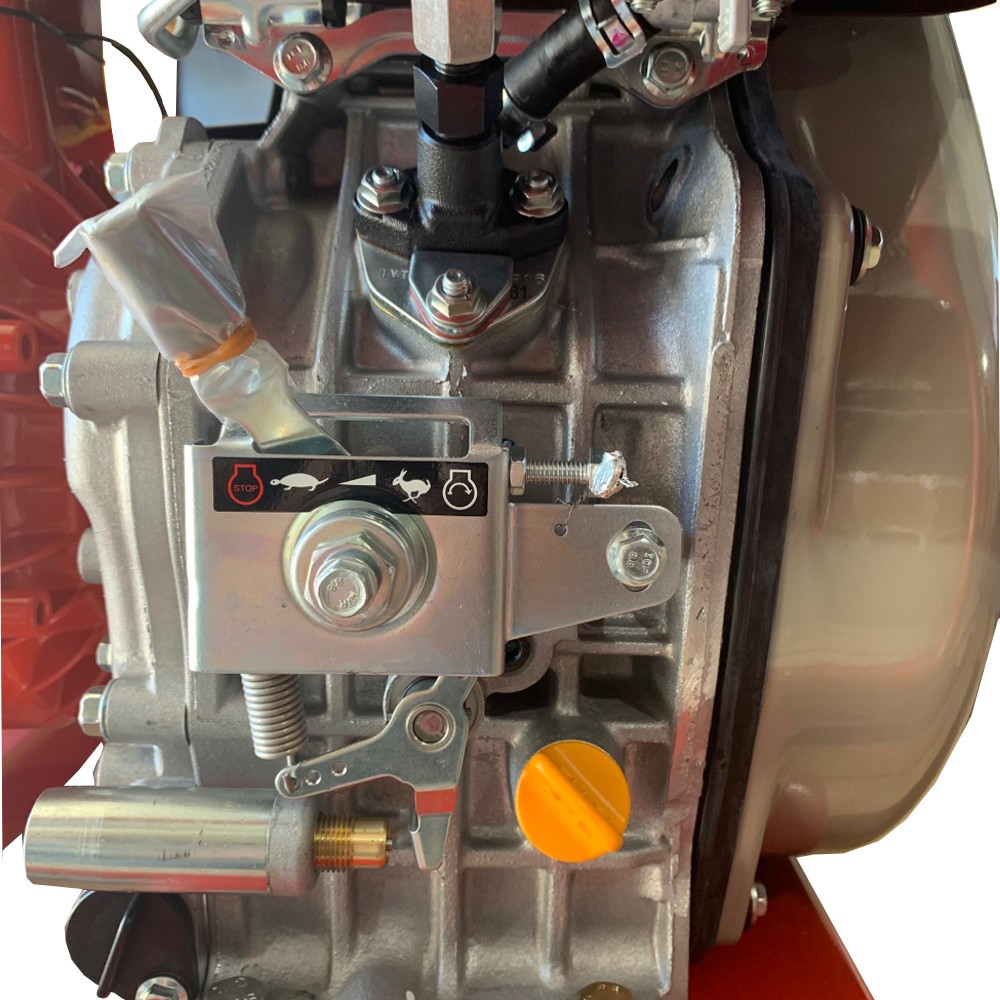

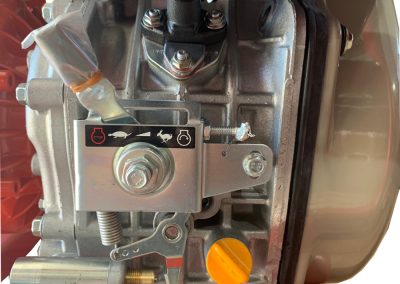

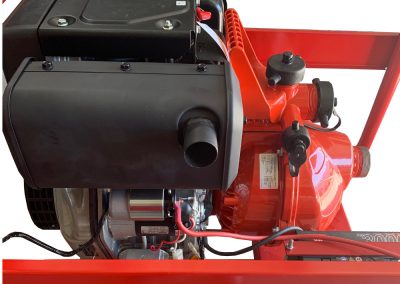

ENGINE
Yanmar 10 hp
Electric + manual start
Transport frame
MATERIAL COMPONENTS
Marine Grade Aluminum Pump Body
Marine Grade Aluminum Diffusers
Marine Grade Aluminum Turbines
Marine Grade Aluminum Rear Flange
Carbon / Ceramic mechanical seal
Body nuts Zinc plated steel
Stainless Steel Coupling Nuts
Pendulum valve Zinc body covered
Hytrel rubber
Nitrile body seal
Nose gasket loaded with fiberglass
Nitrile gasket
Oven baked polyester powder coating

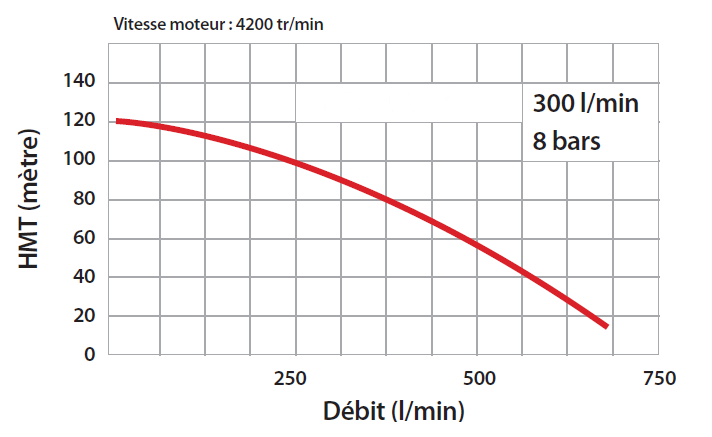

300l / min to 8 bar
Max flow : 680 l / min
HMT: 120 m
Suction: 1 X DSP 65/70 or 1 X DSP 40/45 fittings
Discharge 3 outlets: 1 X DSP 65/70 or 1 X DSP 40/45 + 2 X 1 "
Weight: 66 kg

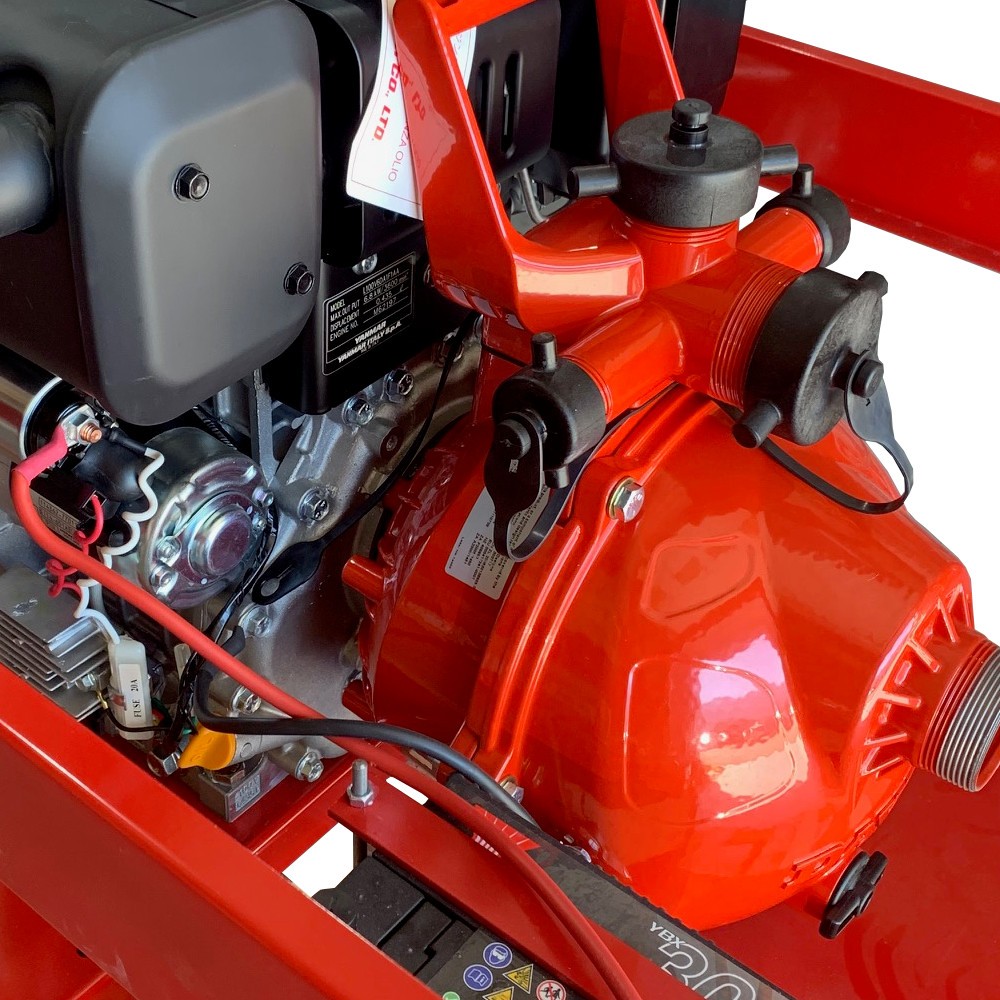

PUMP
Pump body, diffuser and impeller in marine grade aluminum
High pressure twin-line pump
3 discharge outlets
Zinc plated nuts, Nitrile seals
Much larger pump body fill hole
External and internal polyester coating for better reinforced protection
Self-priming up to 5m
Tank capacity (liters) 7,9
