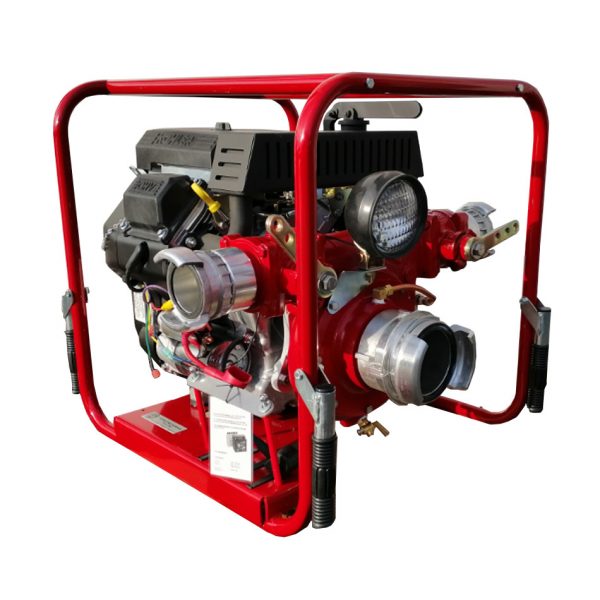

Single turbine centrifugal fire engine

performances

  • Petrol petrol engine
  • Automatic priming
  • Max flow 2500 l / min
  • max head height 85m

Further information

Weight 89 kg
Length 62,8x54,9x56,8 cm
Engines


Information

reference:

EFP-27K-HV

Categories: , Application job:

Pump Specifications

• Monoturbine centrifugal pump
• Pump body in resistant aluminum alloy.
• Bronze turbine.
• Mechanical seal.
• Stainless steel shaft.
• Automatic ignition by exhaust gas guaranteed up to 6m.
• 2 2 1/2 ”BSP (65 mm) water outlet with valve
• 1 suction of 4 ”BSP (70 mm).

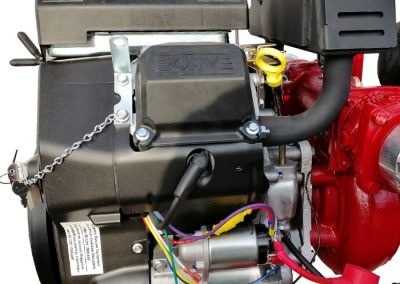

Engine Specifications

• KHOLER 27 CV petrol engine at 3600 rpm,
• V-twin cylinder - air-cooled
• 12V electric start
• 22 L tank detached

Performance at 1 m

•1900 l/min @ 1 Bar
•1135 l/min @ 3 Bar
•760 l/min @ 5 Bar
•380 l/min @ 7 Bars

Characteristics

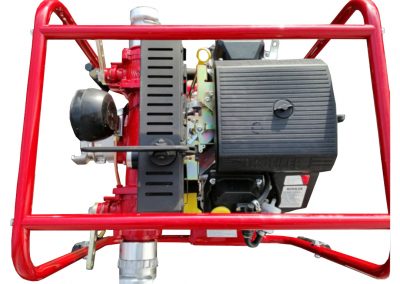

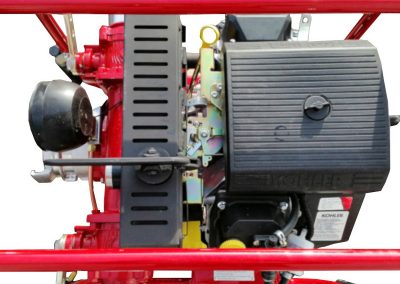

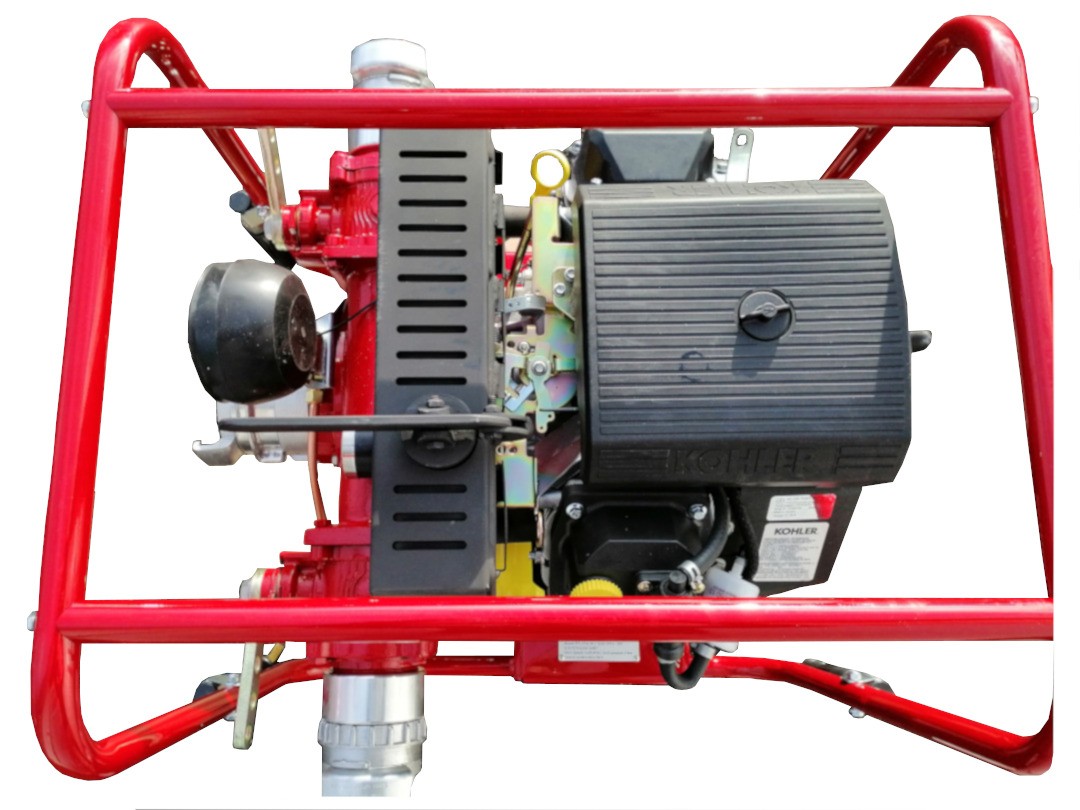

• Pump and motor are mounted on a painted steel frame with handles.
• Can also be delivered on skid (bare chassis).

Accessories Included

CONTROL PANEL WITH
• On / off button.
• Accelerator lever.
• Table lighting.
• Pressure mano.

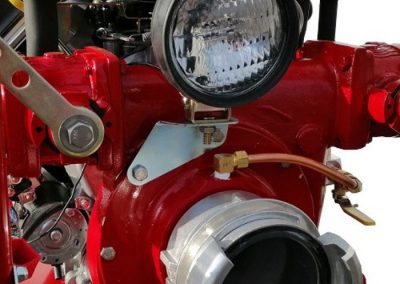

• Projector
