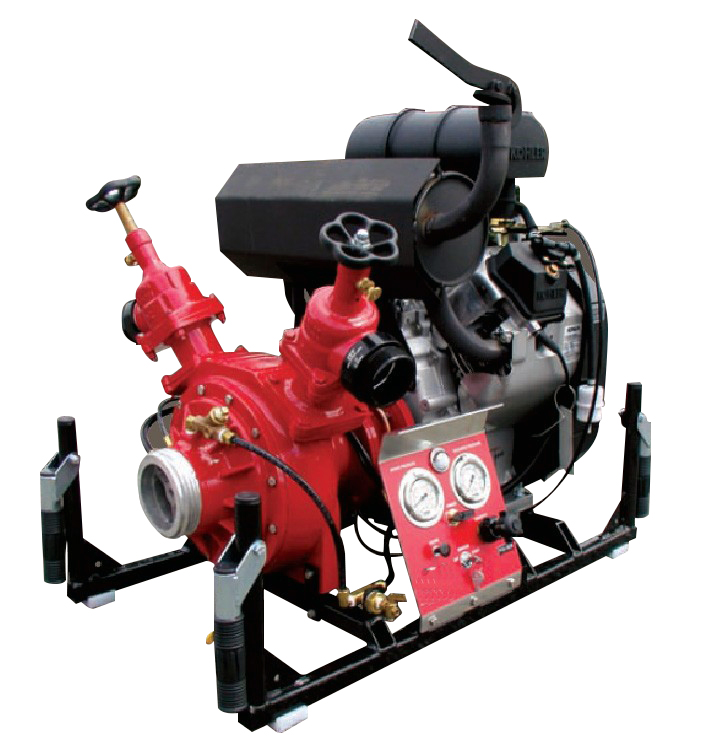

Fire pump with double centrifugal turbine

performances

Petrol petrol engine
Max flow 2500 l / min
1300 l / min at 7.5 bars
450 l / min at 12.5 bars

Further information

Weight 125 kg
Dimensions 94x66x78,7 cm
Engines


Information

reference:

EFP-38KB-2D

Categories: , Application job:

Motor pump Fire or high flow exhaustion

It is intended for fight fire or supply vehicles or water tanks.

Performance at 1 m

2250 l / min @ 1,7 Bars
1800 l / min @ 3,5 Bars
1300 l / min @ 5,2 Bars
1100 l / min @ 7 Bars
450 l / min @ 10 Bars

Features

• Pump and motor are mounted on a painted steel frame with handles.
• Can also be delivered on skid (bare chassis).

Pump Specifications

• This pump uses the new technology of a double centrifugal turbine
• Pump body in resistant aluminum alloy.
• Bronze turbine.
• Mechanical seal.
• Stainless steel shaft.
• Automatic ignition by exhaust gas guaranteed up to 6m.
• 2 2 1/2 ”BSP (65 mm) outlets with valve
• 1 suction of 4 ”BSP (70 mm).

Engine Specifications

• KHOLER 38 CV petrol engine at 3600 rpm,
• Bi-cylinder in V, 4T - air cooling
• 12V electric start
• 22 L tank detached

Accessories Included

CONTROL PANEL WITH
• On / off button.
• Accelerator lever.
• Table lighting.
• Pressure mano.
• Projector

WEIGHT: 125 kg
DIMENSIONS: 940 x 660 x 787 mm
