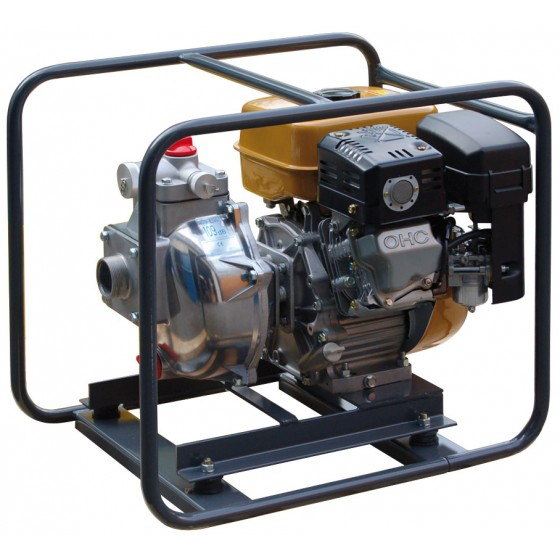

Fire engine with ceramic carbon mechanical seal

performances

  • Petrol petrol engine
  • Max flow 480 l / min
  • 300 l / min at 4 bar
  • 100 l / min at 8 bar

Further information

Weight 44 kg
Length 520x470x530 cm
Engines


Information

reference:

VET 28-9

Categories: Application job:

Medium pressure portable centrifugal fire engine

Petrol engine

PUMP
Pump Type: Self-priming
Ø of Suction Connection: SYM 65/70
Discharge Connection Ø: DSP 40/45 + 2 X 1 ''

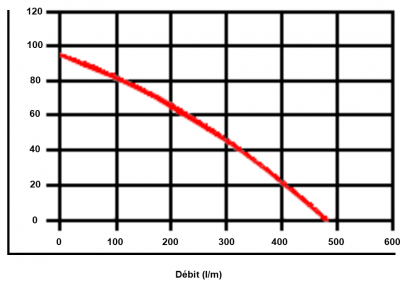

Maximum flow: 480 l/min (28.8 m3/h)
Total Manometric Height: 95 m
Maximum Suction Height: 9.5m
Mechanical seal: Ceramic carboy
ENGINE
Engine type: - 4 stroke OHC
Fuel: Unleaded petrol 95
Tank capacity: 6.1 liters
Autonomy: 2:30 p.m.
Starting: Self-returning launcher. with integrated emergency rope pulley
Electronic oil shortage safety: Standard
MISCELLANEOUS FEATURES
Dimensions LxWxH: 520 x 470 x 530 mm
Net dry weight: 44 kg
Gross Weight packed: 46 kg
Optional accessories: Strainer, fittings and collars
